RASMAK MP / PLATE MOUNTING MACHINE

RASMAK MP / plate mounting machine

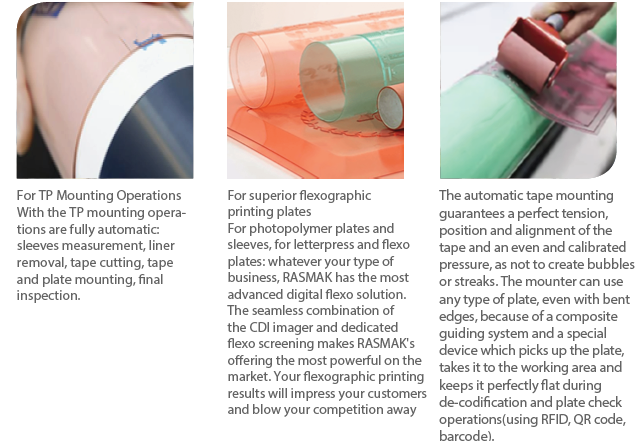

In Rasmak’s MP Series the automatic tape mounting guarantees a perfect tension, position and alignment of the tape and an even and calibrated pressure, as not to create bubbles or streaks. and is reduced greatly human error during mounting of cliche over the pressure rollers or sleeve mandrels as required by the customers

For special applications the RASMAK MP ( MOUNTER PLATE )

In mounting of cliche over the pressure rollers or sleeve mandrels as required by the customers through high zooming capacity cameras. Mounting is done at required measurements moving horizontally and vertically by DDservo motors.

Flexographic plate mounting machine

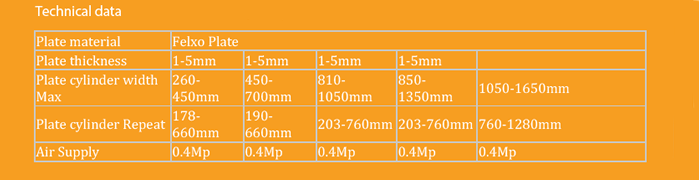

Material width :1400 mm
Possibility of choosing between mounting over the pressure roller or sleeve mandrel
Positioning ability of sleeve mandrel up ,down by servo motors

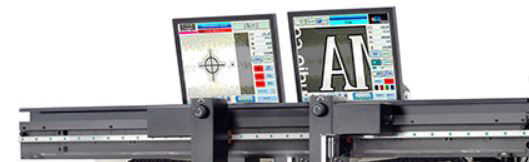

2 Sony zoom color cameras, each one provided with a ring of led
22” lcd split touch screen color monitor
The camera can be adjusted in all directions. Higher precision of printing plating adhesion and accurate registering.
possibility adjustment by HMI panel
fully automatic by servo motor

Advantages

• fully automatic by servo motor
• LED LCD displays
• Colour CCTV system
• Camera carriage
• Motorized lead-on table with 9 positions in memory
• Pneumatic lay-down roll
• High zooming capacity sensitive cameras activated by servo motors
• Motorized focus
• Pneumatic dividing disc

By RASMAK possibility to get high quality
